TITAN XL Shoring System

The TITAN XL Shoring System is created from lightweight aluminum, and it built to support heavy loads and decks up to 27”10” (8.48m) with the TITAN’s HV Drophead. This fully aluminum shore makes it possible for a fully extended shore to be raised in place from the ground by a single worker. We pride ourselves on creating a dynamic system that’s durable, lightweight and ready-to-install.




SEAMLESSLY INTEGRATES WITH TITAN’s HV SYSTEM

The TITAN XL Shoring System works seamlessly with all TITAN Systems. We designed this system from the ground up to make sure you’re equipped to succeed on the job site.

CUTTING EDGE FEATURES

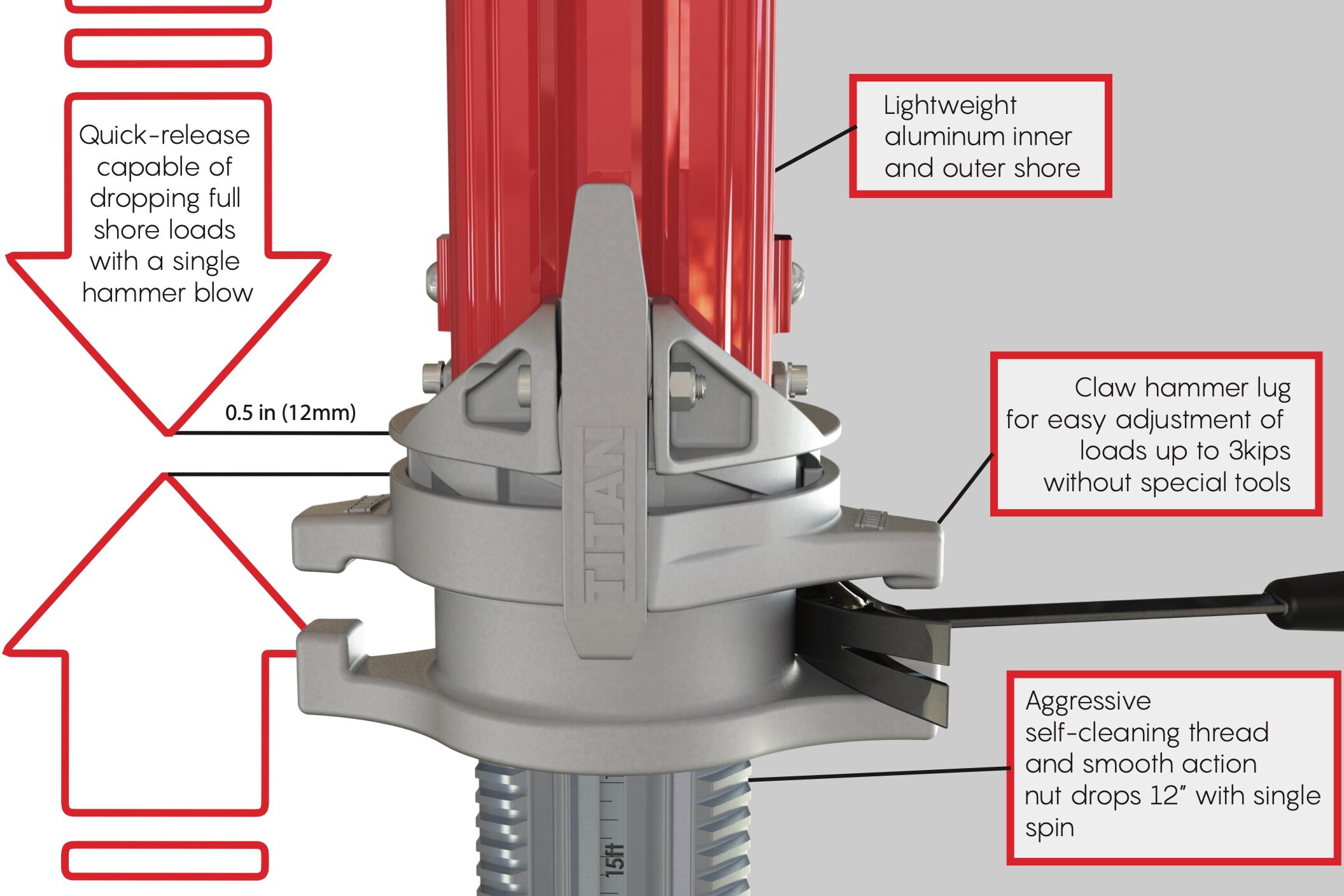

  • Quick-Release Drop Head - Drops a full 1/2” (12mm) with a single hammer blow

  • Lightweight Aluminum Inner and Outer Shore

  • Easy Height Adjustments with just the twist of a hammer

  • Aggressive Self-Cleaning Threads

  • Fast Set-up Adjustment - Drop a full 12” (30cm) with a single nut spin

  • Integrated Easy-to-Read Laser Etched Tape Measure

Contact our sales team to start your custom order.

TITAN XL is available for rent or purchase:

  • TITAN XL 625 - 15’2”-21’4” (4.6m-6.5m), 91lb (41.3kg)

  • TITAN XL 350 - 7’4”-12’4” (2.2m-3.8m), 64.5lb (29.3kg)

  • TITAN XL 1m Extension - 12.5lb (5.7kg)

  • TITAN XL 2m Extension - 24lb (11..4kg)



TITAN XL and HV Components

Each of our TITAN XL and HV components are engineered to help you succeed on the job site. Learn more about our systems and how they can help save you time and money. Available to rent or purchase.

TITAN XL CLIP

Instantly streamline the setup and connection process with just two TITAN XL Clips. Eliminating the wasted time with wrenches and standard four nut-and-bolt configurations.

TITAN’s HV and XL Beams

TITAN’s HV beams are lightweight aluminum members that are easy to install and minimize crane requirements. A two-person crew is fully capable of installing an entire deck. The interlocking members eliminate cutting or lapping, and there is no costly make-up or assembly required.

TITAN XL LEDGER

A single worker can quickly install the first few shore posts by using our TITAN XL Ledgers. The ledger can also be used as a frame support to create four-legged TITAN XL Towers.
