Column Lock

The all-new Column Lock™ utilizes TITAN’s patent pending asymmetrical design to save time, labor costs, and materials. Weighing only 5.5 lbs, it can be installed in minutes and allows for final deck grading after installation. When installed, it has a lateral capacity of 4,000 lbs (2.5:1 FS), achieving ACI recommended 2% dead load capacity without reliance on x-braces or plywood sheeting. One Column Lock™ pair replaces up to eleven 3-post x-braces, saving time and money on shoring system setup and improving overall floor access.




Drophead Clamp.png
Drophead Clamp.png
Drophead Clamp and UWC.jpg

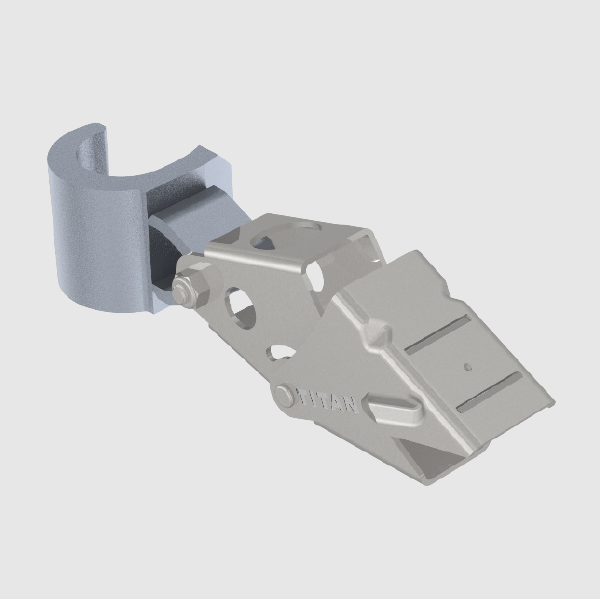

HV Drophead Clamp

TITAN’s patent pending Drophead Clamp is designed to optimize bracing by encouraging a top-to-bottom configuration. The Drophead Clamp allows only one ground-based worker to easily install braces, eliminating the need to use a ladder or scissor lift for shores #1–4 (up to approximately 14'). This tool also enhances efficiency by greatly reducing the number of ladders or scissor lifts required to install braces above 14' and offers a far swifter installation process than a traditional wedge clamp.




XL Clip Installed.jpg
XL Clip.png
XL Clip back.png



XL Clip

The XL Clip, a new creation inspired by the needs of our clients, streamlines the process of extending shores. The standard four-bolt configuration typically used to attach the one meter extension to XL shores can be replaced with only two XL Clips. Load capacity is maintained while the clips are in use and the spring clip feature ensures the device will stay in place when attached. The clip’s simple installation and removal requires only a hammer; no wrench or other tools necessary.
