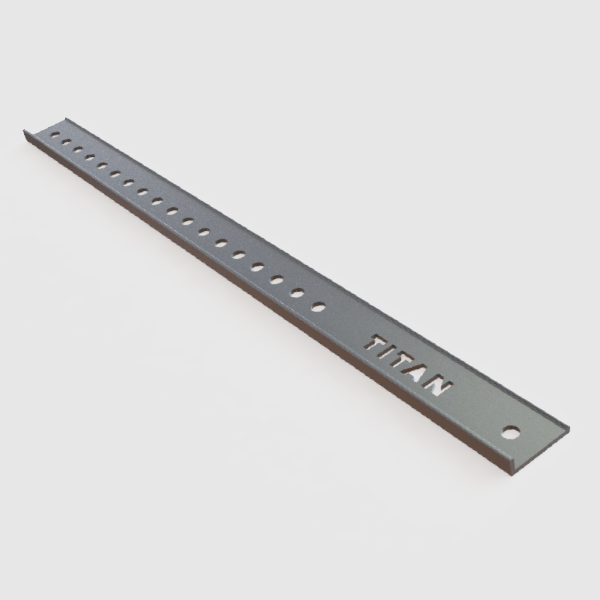

HV Column Lock

Item #: 974-019
Weight: 5.5 LB / 2.5 kg

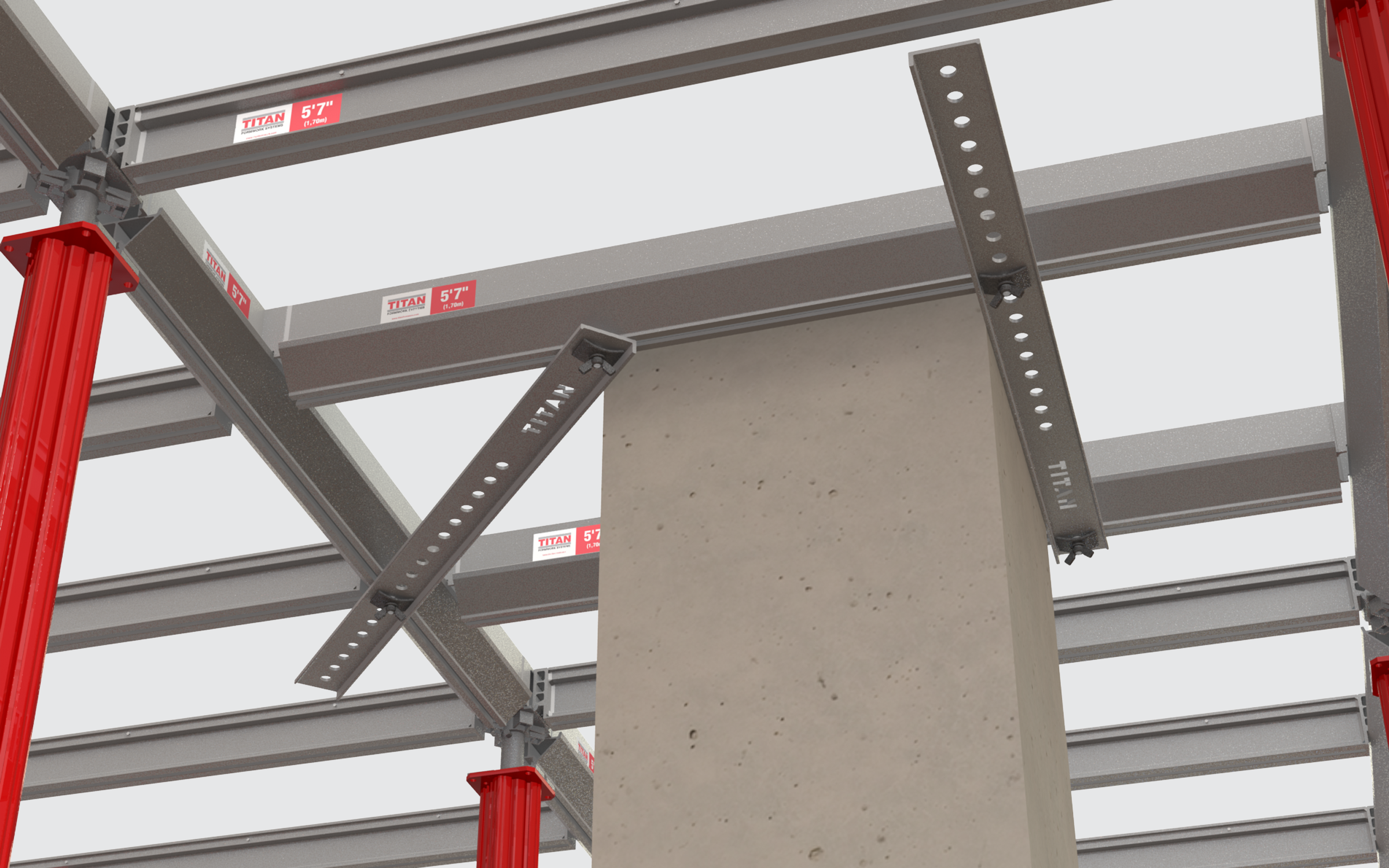

The all-new Column Lock™ utilizes TITAN’s patent pending asymmetrical design to save time, labor costs, and materials. Weighing only 5.5 lbs, it can be installed in minutes and allows for final deck grading after installation. When installed, it has a lateral capacity of 4,000 lbs (2.5:1 FS), achieving ACI recommended 2% dead load capacity without reliance on x-braces or plywood sheeting. One Column Lock™ pair replaces up to eleven 3-post x-braces, saving time and money on shoring system setup and improving overall floor access.
